4.3.4 Boulder City Doorway
📝 Summary
A single 98-inch Samsung display paired with ceiling audio presents the Boulder City doorway vignette, including the Jimmy character audio. A motion sensor triggers playback as visitors approach.
📦 Equipment
| Device | Model | Quantity | Location |
|---|---|---|---|
| Samsung Display (DISP03-05) | QM98T-B | 1 | Wall |
| Peerless Video Wall Mount | DS-VW755S | 1 | Wall |
| Peerless Adapter | ACC-V600800 | 1 | Wall |
| Media Computer | Intel TBD | 1 | MDF Rack |
| Phidgets SBC | SBC3003_0 | 1 | MDF Rack |
| Motion Sensor | MOT2002_0 | 1 | Exhibit |
| IP Power Distribution | NP-02B | 1 | MDF Rack |
| QSC Amplifier | SPA2-60 | 1 | MDF Rack |
| QSC Ceiling Speaker | AD-C4T-LP | 2 | Ceiling |
🎨 Renders
🔌 Wiring Diagram

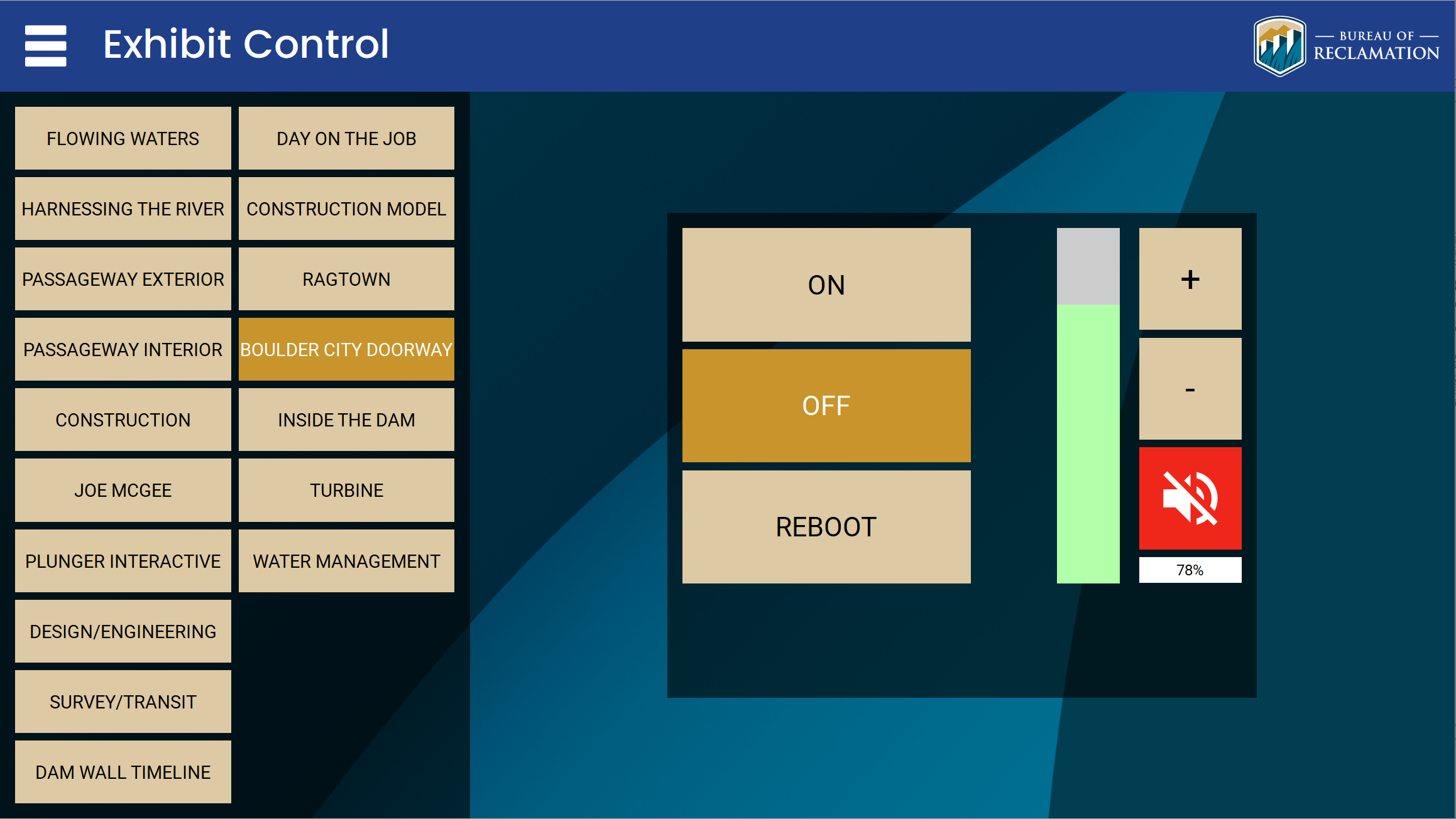

🎛️ Controls
🛠️ Operation
- The system comes on automatically on the global schedule (7:00 AM to 6:00 PM), or you can override it from the control tablet.
- As a visitor approaches, the motion sensor triggers the vignette, playing the Jimmy character audio through the ceiling speakers with video on the display.
- Verify video and audio playback, and confirm the proximity sensor is detecting movement and triggering the video.
🧰 Maintenance
- Verify the motion sensor is detecting approach and triggering playback. If playback does not start on approach, check the sensor and its wiring.
- Confirm both ceiling speakers are producing the Jimmy character audio at a normal level.
- If the display is blank while powered, reboot the exhibit media source from the tablet.
- Check the display mount and adapter bracket security periodically.
⚙️ Configuration
Applications Used
- Samsung display web UI / MDC - Used to check and set display power, input, and status.
- Synaccess netBooter web UI - Used to power-cycle the exhibit devices through the NP-02B IP PDU.
- Phidget control panel - Used to verify the SBC3003 single-board computer and the motion-sensor input.
Connection Details
- Samsung QM98T-B display (DISP03-05): 10.10.0.90 (Samsung MDC, TCP 1515)
- BrightSign player (DVP02-02): 10.10.0.91 (web UI at http://10.10.0.91)
Playback is driven by the BrightSign player DVP02-02. (The original equipment list showed an Intel media computer; the BrightSign is what is installed.)
🔧 Troubleshooting
The display is powered and on, but the exhibit video is blank
Why
The media player feeding the exhibit has stopped outputting. This was restored by a remote player reboot in the confirmed case (2026-05-06).
Do this
- Confirm the display is on and receiving power.
- Reboot the exhibit media source from the control tablet and give the player time to restart.
Still stuck
If a reboot does not restore video, contact support. A remote reboot of the specific player has resolved this before.
Playback does not start when a visitor approaches
Why
The motion sensor is not triggering, or its wiring needs checking.
Do this
- Confirm the display and audio are otherwise working.
- Check that the motion sensor is detecting approach; note if it is not.
Still stuck
Report a sensor that does not trigger playback.
If the first action does not resolve it, contact the KMI AV support team: Brian Alexander, 214-799-1850, Brian.Alexander@OnyxIntegrations.com.
